a, Uses

& nbsp; Ds type continuous bucket conveyor is absorbing advanced technology on the basis of West Germany, on their own to improve the design of conveyors for horizontal tilt (angle of ≤60 °) conveying all kinds of powder and bulk loose materials, such as cement clinker, iron slag, ore, limestone, coke, etc. Superior heat resistance and reliability scales slat conveyors, belt conveyors and vibrating conveyors, etc., stand-alone transport capacity up to about 150M, and slat conveyor scales than saving more than 50%. It is widely used in building materials, metallurgy, coal, chemical, power and other industrial sectors.

two, DS-type bucket conveyor layout pattern

& nbsp; layout pattern Ds type continuous bucket conveyor total of five, shown in Figure 1.

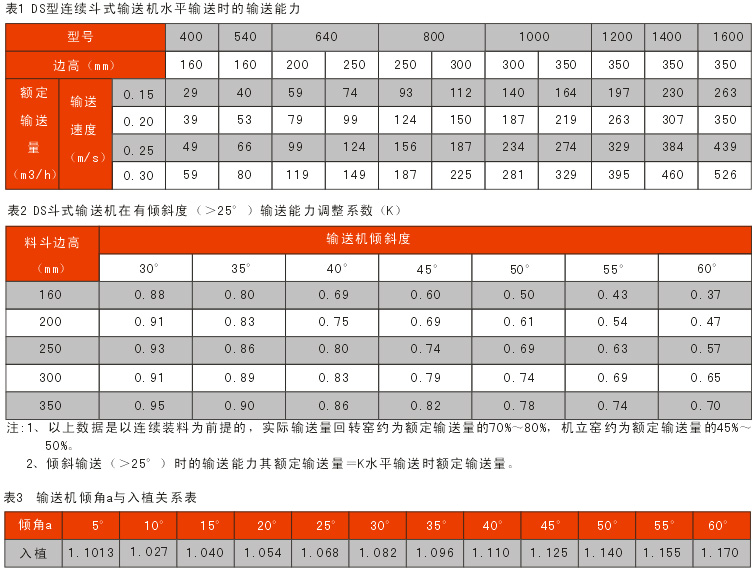

Third, the technical parameters

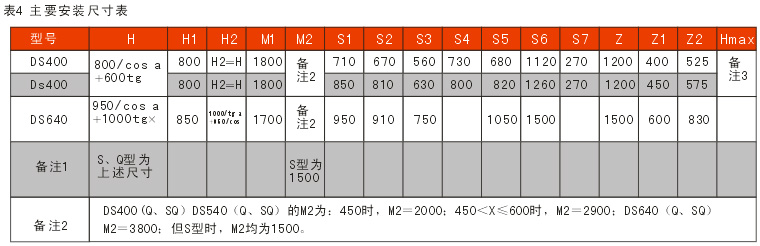

four, DS-type continuous bucket conveyor basic shape and dimensions
